Newton Subsea Gripper

https://www.jmrobotics.no/web/image/product.template/332/image_1920?unique=bd4810d

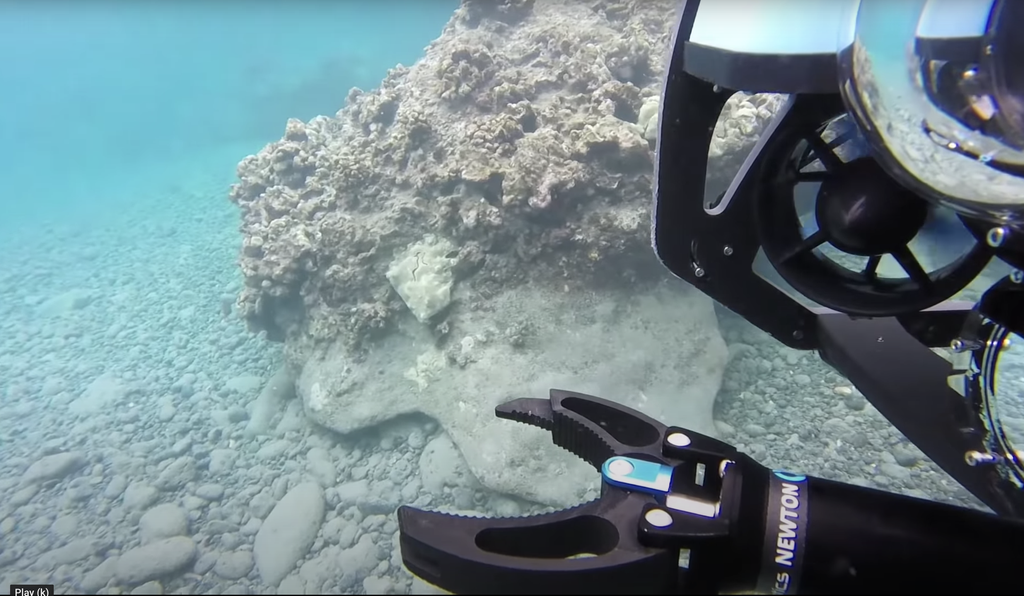

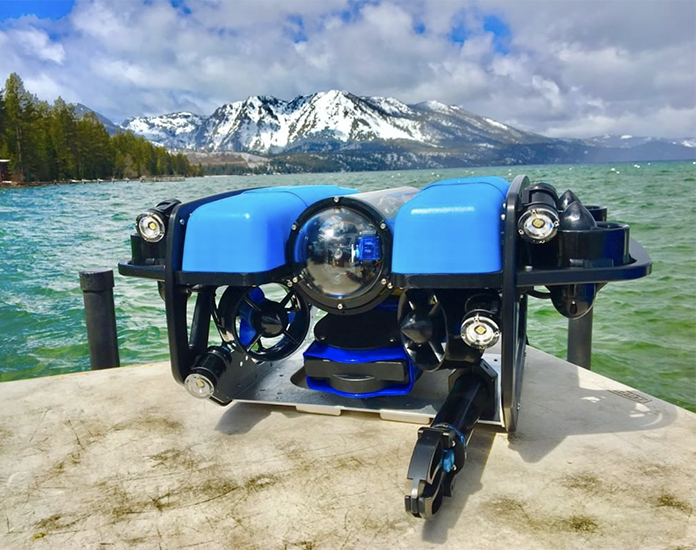

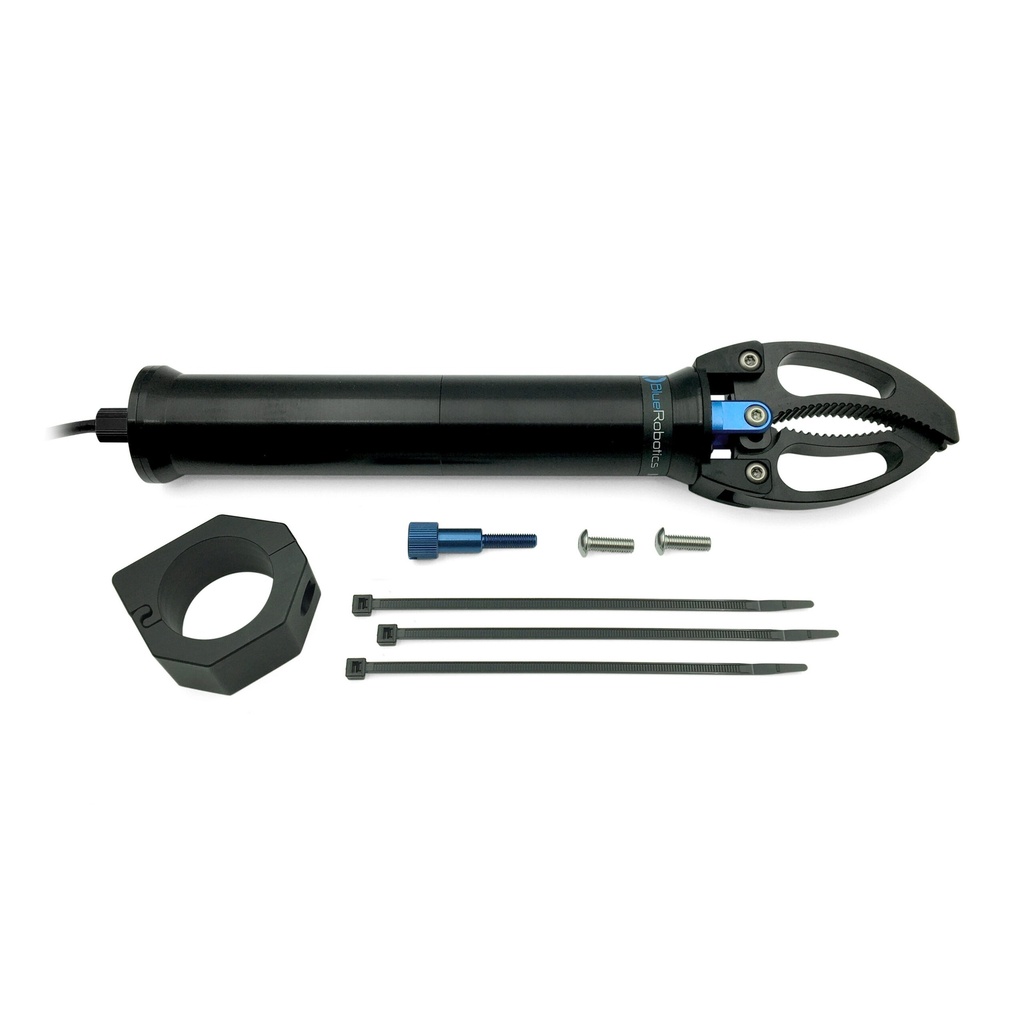

The Newton Gripper provides the BlueROV2 and other subsea vehicles with the ability to interact with the subsea environment to retrieve objects, attach recovery lines, or free a snagged tether! Includes everything needed for installation on the BlueROV2.

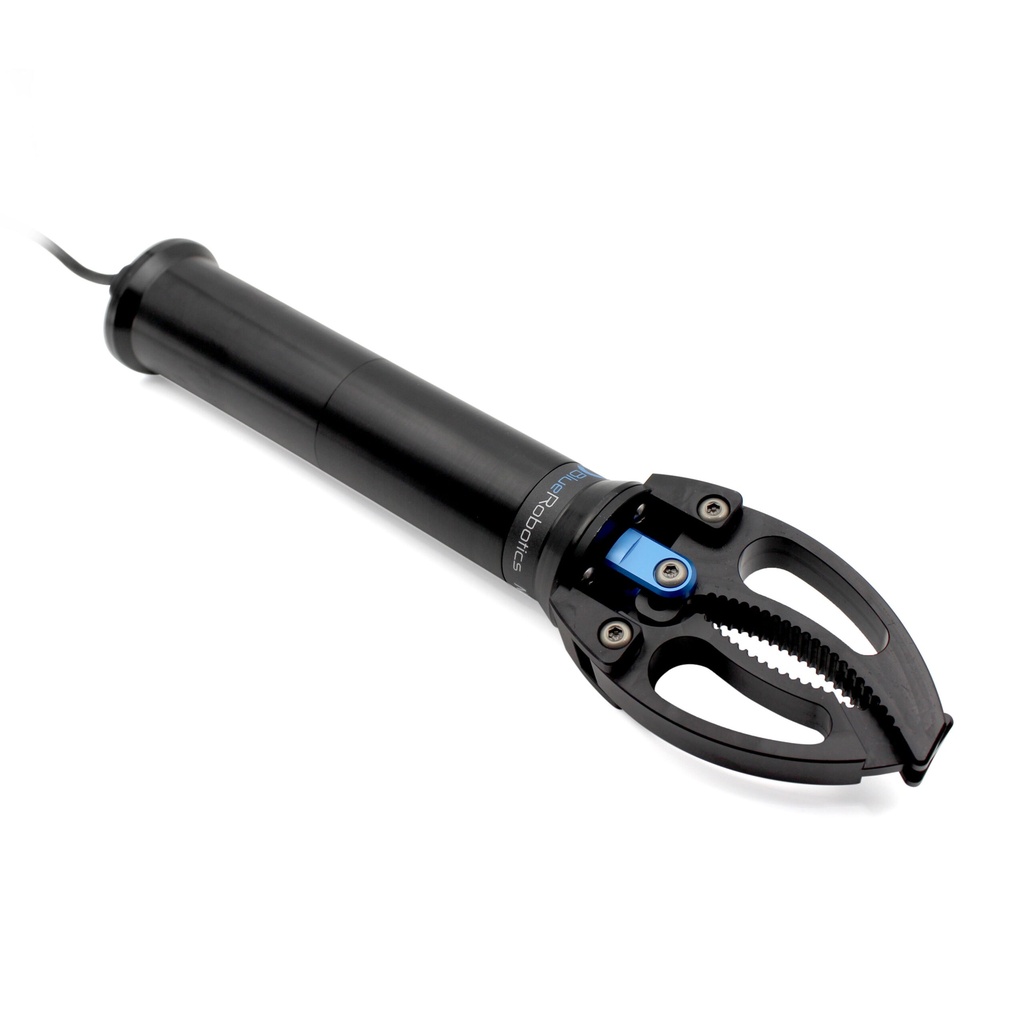

The Newton Subsea Gripper is a single function manipulator for the BlueROV2 and other subsea vehicles. It’s the result of several years of effort starting with a senior project in 2016 and evolving into the current design over several iterations. Each element was carefully designed and combined to create an awesome ROV tool.

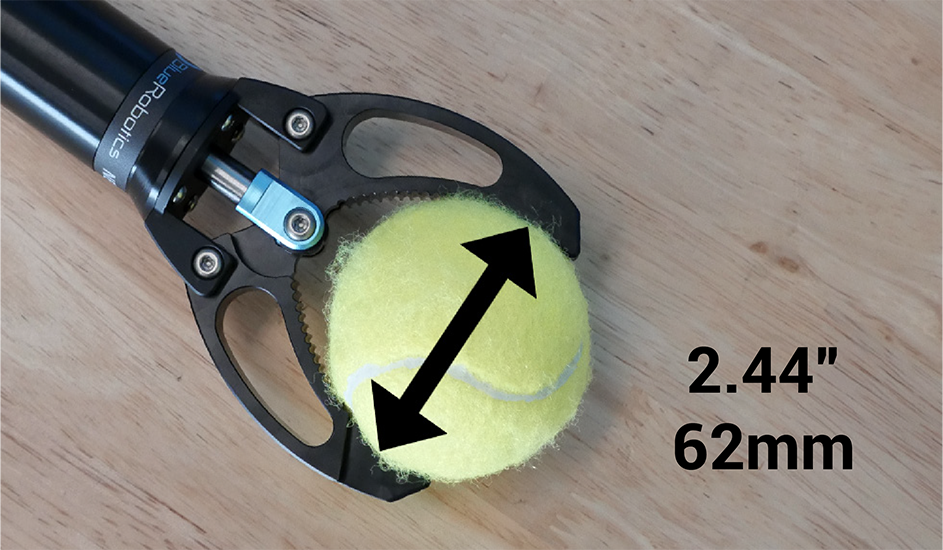

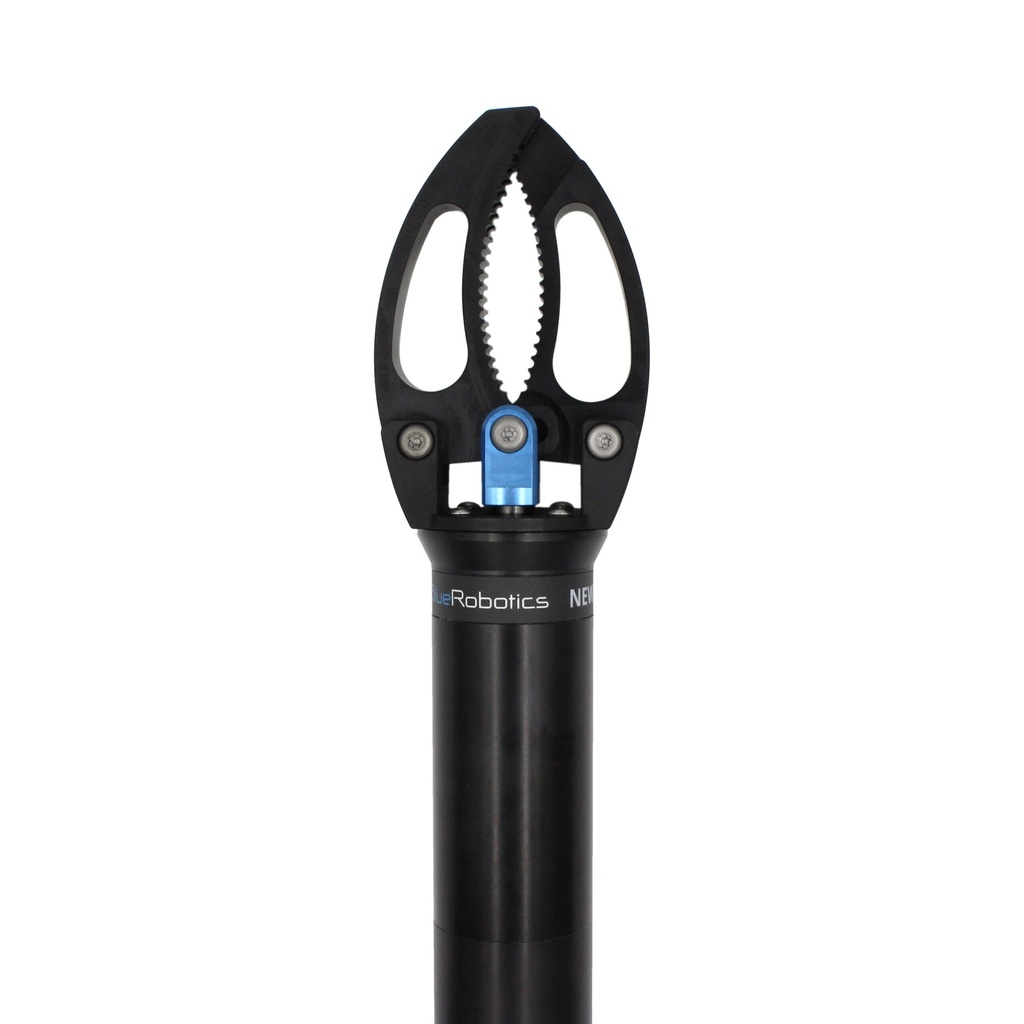

The gripper has jaws that open to grab objects up to 2.44″ or 6.2cm in diameter. The plastic jaws are mounted with custom aluminum screws to create a corrosion resistant mechanism that doesn’t need any lubrication. The jaws are driven by a linear actuator that uses a geared brushed motor and lead screw. The main body is air-filled and sealed with O-rings. We’ve spent a lot of time testing it at pressure and it’s rated to 300m depth with plenty of safety factor.

741.62 741.62 USD 741.62

kr 6,930.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
Shipping: Shipping cost will be added to the invoice
