HD ROV
HD-series
The HD-series stands out as one of the most versatile remotely operated underwater vehicles (ROVs) on the market. Let's take a closer look at the key features of the HD ROV.
Designed and developed in JM Robotics

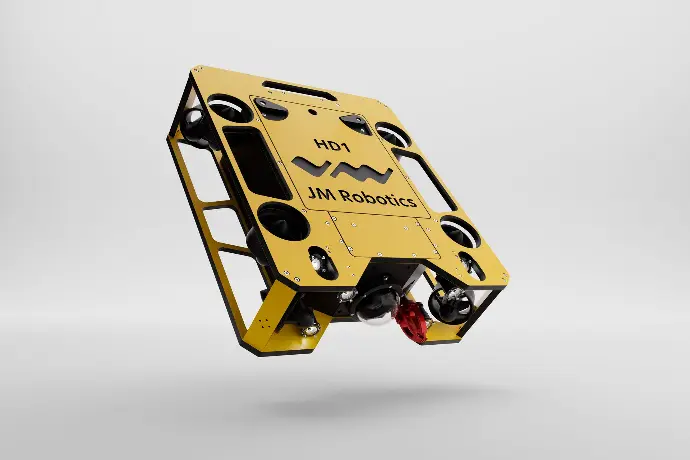

JM HD1
Professional ROV platform for all your underwater inspection needs.
Request a price quote Datasheet
Coming soon

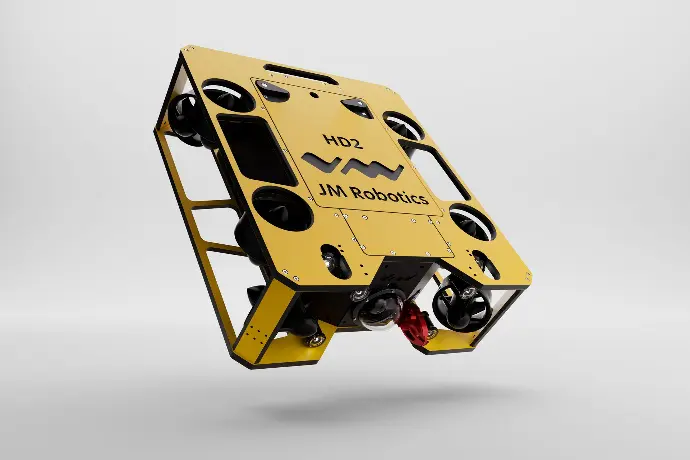

JM HD2
ROV with significant power-to-weight ration to handle the toughest conditions.
Designed and developed in JM Robotics

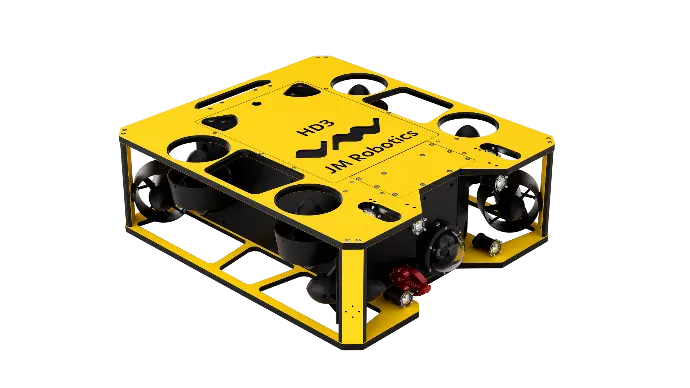

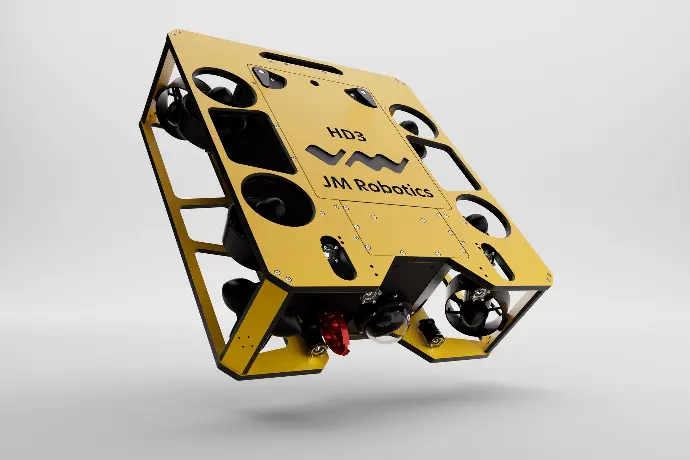

JM HD3
Flexible and powerful ROV platform designed to handle heavier payloads and conduct advanced inspections.
Key features
Standard components

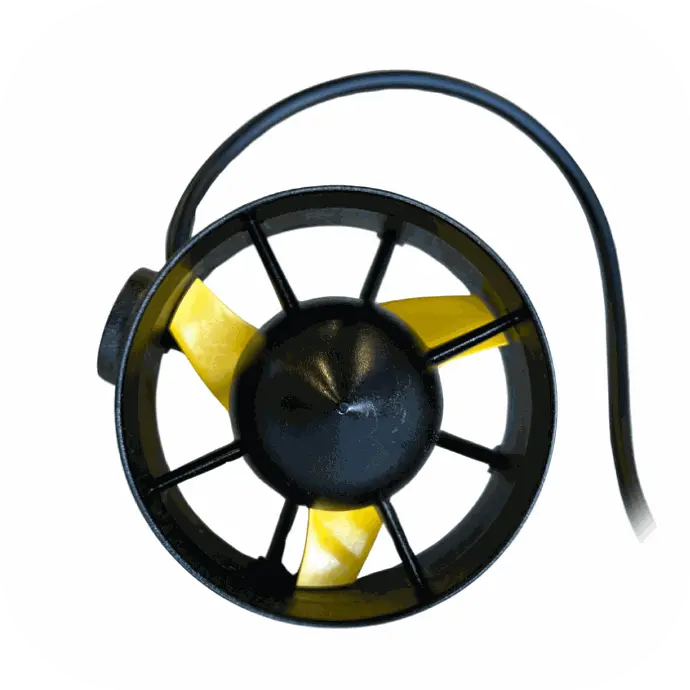

8 thrusters
Provide exceptional thruster power and 6 degrees of freedom.
1080 camera
HD-quality camera with tilt and liquid-focus lens for razor-sharp images.
Gripper
When you need to grasp something.
300 m
Pressure tested.
23/28/35 kg
Own weight.

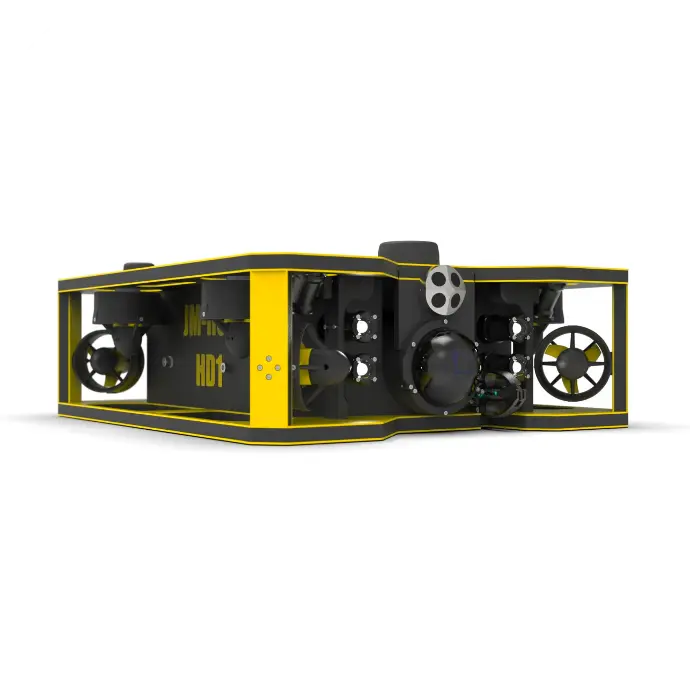

Easy to store
Low profile handles currents.

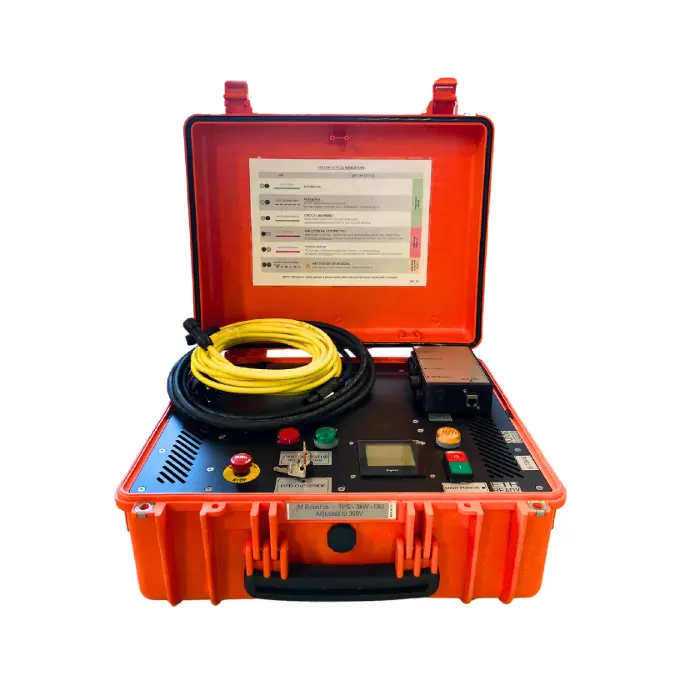

Surface-supplied power
Continuous operation without the need to change batteries.

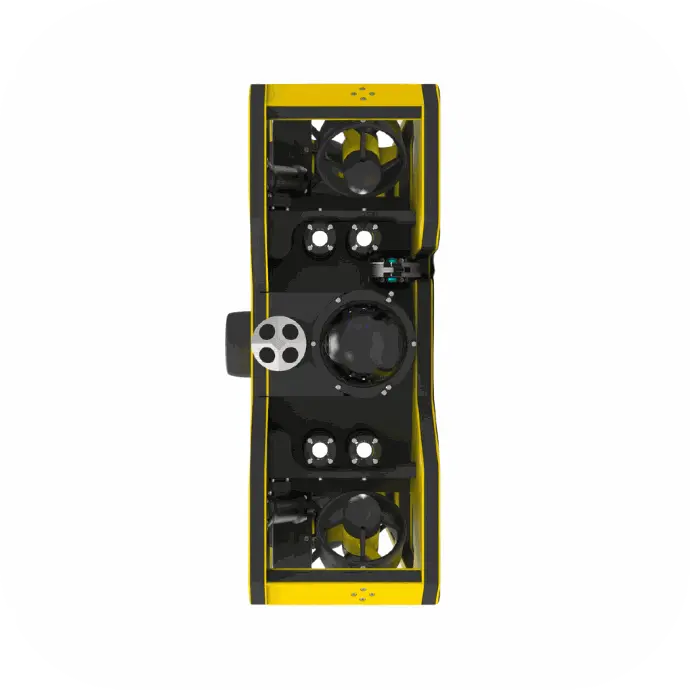

6DOF
360-degree flying capabilities.
Remote operation
Delivered in the JM Connect software.
Extra equipment
Optional equipments for your inspections.
JM Cubecam
Add an additional camera with easy installation and connection.
Sonar
Prepared for integration of sensors to meet your needs.
DVL
Simple integration for DVL.
Special tools
Prepared for the integration of special tools.
Ekstra lights
Option for additional light as needed.
USBL
Prepared for positioning equipment.

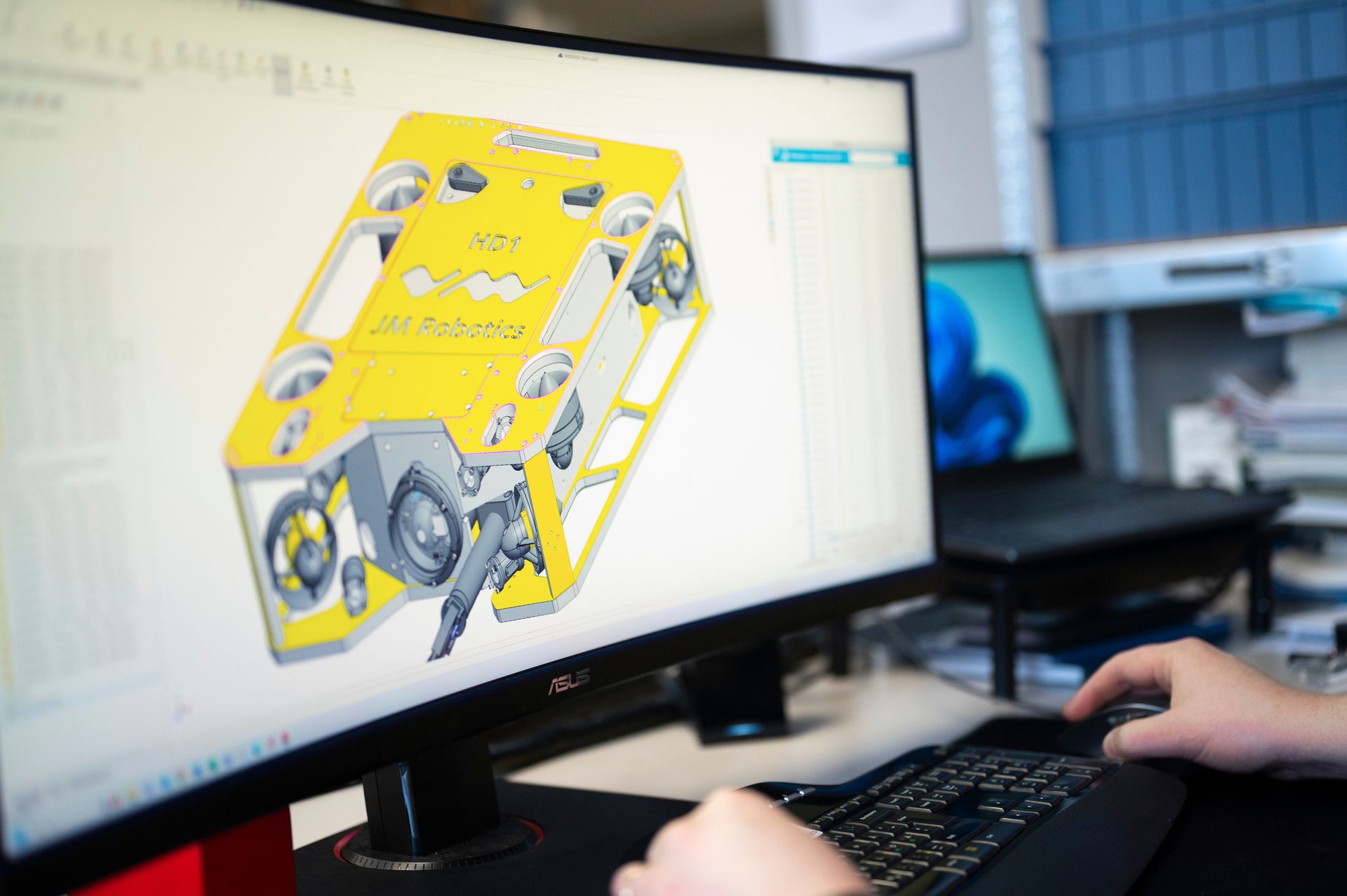

Customized design
The low profile design of the ROV stands out when handling currents and the frame is constructed to protect all the sensors and equipment mounted inside the ROV.
The modular design of the frame also provides you the possibility to easely make additions like payloadskids and other tool carrying applications on the ROV system for external instruments.
Tilpasset design
ROV'ens lave profil gjør at den kan håndtere sterke havstrømmer, og rammen er konstruert for å beskytte alle sensorer og montert utstyr.
Den modulære utformingen av rammen gjør det også enkelt å montere payload skid'er og annet ekstrautstyr på ROV-systemet.
360 degrees of freedom
The advanced design combines performance, reliability, and manoeuvrability, making it an optimal choice for various underwater tasks.
What's the difference between ROVs
Our line of ROVs are carefully designed to meet the needs of professional exploration in challenging weather conditions.
All our ROVs is prepared for DVL, different type sonars and underwater positioning with USB- or Ethernet-connectors.
BlueROV2
ATTRIBUTES
Dimensions: 457/ 670/ 254 mm
Depth Rating: 300 m
Weight: 16 kg
FLYING CAPABILITIES
6DOF: no
THRUSTERS
Thrusters: 8
Thrusters Type: T200
Thruster Connection: WLP
Manufacturer: Blue Robotics
POWER SUPPLY
TOP Side: Optional
Battery: yes
GRIPPER
Gripper: yes
Gripper W/Rotation: optional
LIGHTS
Lights: 4
Light Brightness (Lumens): 6 000
CAMERA
Camera: 1080p HD, low-light
Camera Focus: Manual
Camera Tilt: yes
Focus Lens: no
CABLE
Tether Copper: 300 m
Tether Fiber: no
EXTRA
Additional Channels: USB, Ethernet
SOFTWARE
JM Connect: Pre-installed
JM Care: Recommended
JM HD1
ATTRIBUTES
Dimensions: 650/ 550/ 200 mm
Depth Rating: 300 m
Weight: 23 kg
FLYING CAPABILITIES
6DOF: yes
THRUSTERS
Thrusters: 8
Thrusters Type: T200
Thruster Connection: Connector
Manufacturer: Blue Robotics
POWER SUPPLY
TOP Side: yes
Battery: no
GRIPPER
Gripper: yes
Gripper W/Rotation: optional
LIGHTS
Lights: 8
Light Brightness (Lumens): 12 000
CAMERA
Camera: 1080p HD, low-light
Camera Focus: Manual
Camera Tilt: yes
Focus Lens: yes
CABLE
Tether Copper: 300 m
Tether Fiber: Optional
EXTRA
Additional Channels: Unlimited
SOFTWARE
JM Connect: Pre-installed
JM Care: Recommended
JM HD2
ATTRIBUTES
Dimensions: 700/ 600/ 220 mm
Depth Rating: 300 m
Weight: 28 kg
FLYING CAPABILITIES
6DOF: yes
THRUSTERS
Thrusters: 8
Thrusters Type: P1000
Thruster Connection: Connector
Manufacturer: TRUSTME
POWER SUPPLY
TOP Side: yes
Battery: no
GRIPPER
Gripper: yes
Gripper W/Rotation: optional
LIGHTS
Lights: 8
Light Brightness (Lumens): 12 000
CAMERA
Camera: 1080p HD, low-light
Camera Focus: Manual
Camera Tilt: yes
Focus Lens: yes
CABLE
Tether Copper: 300 m
Tether Fiber: Optional
EXTRA
Additional Channels: Unlimited
SOFTWARE
JM Connect: Pre-installed
JM Care: Recommended
JM HD3
ATTRIBUTES
Dimensions: 740/ 660/ 240 mm
Depth Rating: 300 m
Weight: 35 kg
FLYING CAPABILITIES
6DOF: yes
THRUSTERS
Thrusters: 8
Thrusters Type: T500
Thruster Connection: Connector
Manufacturer: Blue Robotics
POWER SUPPLY
TOP Side: yes
Battery: no
GRIPPER
Gripper: yes
Gripper W/Rotation: optional
LIGHTS
Lights: 8
Light Brightness (Lumens): 12 000
CAMERA
Camera: 1080p HD, low-light
Camera Focus: Manual
Camera Tilt: yes
Focus Lens: yes
CABLE
Tether Copper: 300 m
Tether Fiber: Optional
EXTRA
Additional Channels: Unlimited
SOFTWARE
JM Connect: Pre-installed
JM Care: Recommended
JM Robotics presents
Products to enhance your underwater experience.

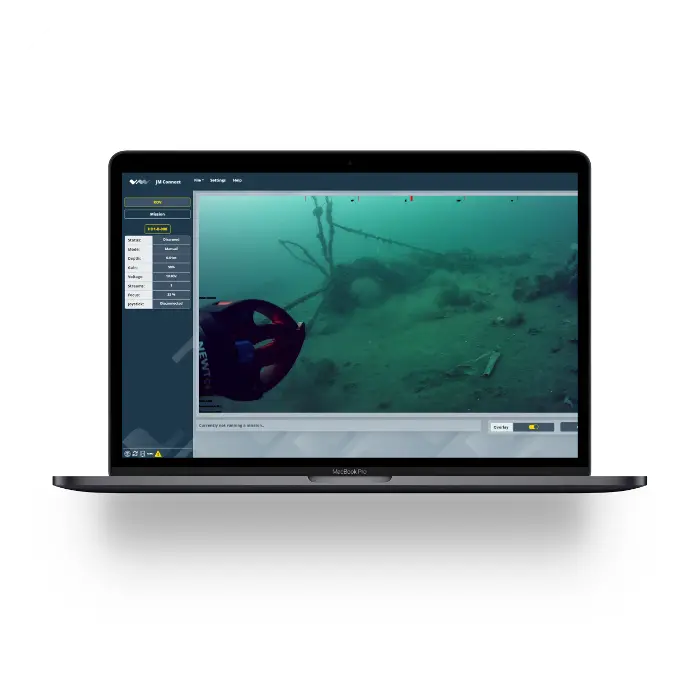

JM Connect —
software for your subsea inspection needs
JM Connect gives you full control over your ROV operations. The software is pre-installed in all our ROV systems.
JM Care —
ensures that all your maintenance and support needs are taken care of
With JM Care, we can troubleshoot, update, and maintain your ROV system.
