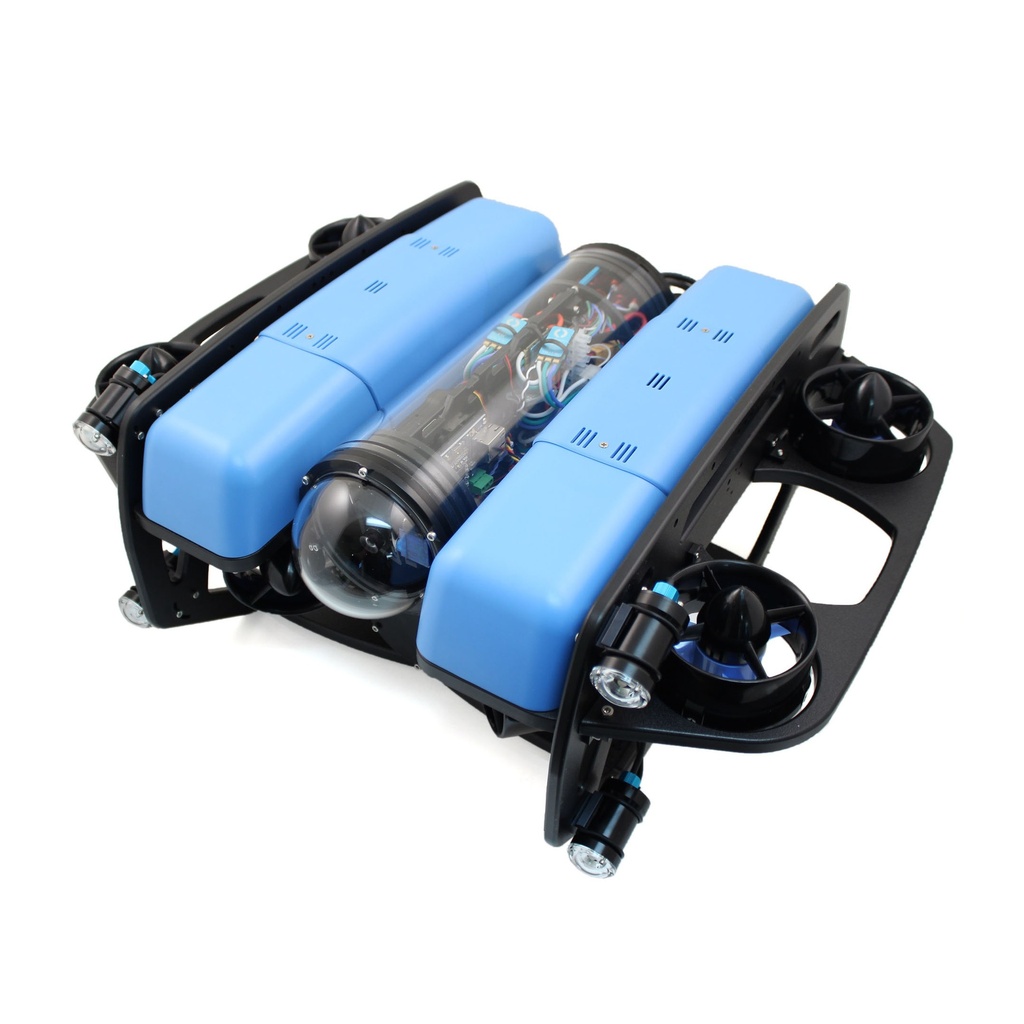

BlueROV2 Heavy Configuration Retrofit Kit
This kit provides the components needed to upgrade to the BlueROV2 Heavy Configuration with four vertical thrusters, 6 degree-of-freedom control, increased buoyancy, and external thruster guards. Requires the use of two additional penetrator holes on the main enclosure.
Contents
- 2 x T200 Thruster BlueROV2 Spare (CW and CCW)
- 2 x Basic ESC
- 2 x Heavy Thruster Guards
- 2 x Heavy Fairing
- 2 x Heavy Buoyancy Foam
- 8 x Heavy Guard Brackets
- 2 x 3-Position Eurostyle Terminal Block
- 3 x Ballast Weight
- 30 x Zip ties for cable routing
- Bracket Screws
- 16 x M4x16 button head cap screw
- Thruster Mounting Screws
- 8 x M3x12 socket head cap screw
- Fairing Screws
- 4 x M3x12 flat head Phillips screw
- Ballast Mounting Screws
- 3 x 8-18 thread, 5/8″ long, thread-forming screw
